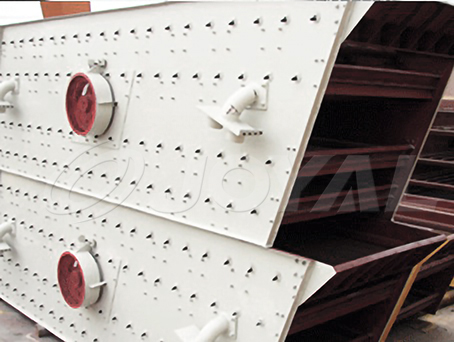

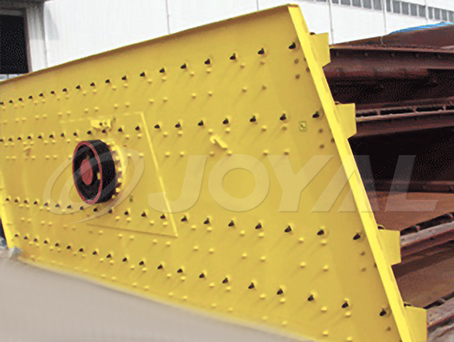

Vibrating Screen

Type:Screening Washers

Input Size:200-400 mm

Processed Materials:This machine is mainly used for medium and fine crushing of various ores and bulk materials.

Applications:Circular vibrating screen is widely used in product screening and grading in mining, building materials, transportation, energy, chemical and other industries.

Capacity :10-810 t/h

Email:joyal@crusherinc.com

  • Vibrating Screen Introduction:

    The JOYAL Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.

  • Vibrating Screen Features:

    1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
    2. Large handling capacity, which can reach 810 ton per hour.
    3. Long flow line and various screening specifications.
    4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.

  • Vibrating Screen Working Principle:

    The vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.

  • Vibrating Screen Technical Data:

    Model Screen

    Cloth

    Size
    (mm)

    		 Screen

    Decks

    		 Screen

    Opening

    Size
    (mm)

    		 Max.

    Feeding

    Size
    (mm)

    		 Capacity
    (t/h)    		 Motor

    Power
    (kw)

    		 Weight
    (t)    		 Overall
    Dimension
    (mm)
    2YZS1237 3700×1200 2 3-50 200 10-80 11 2.40 4773×2050×2247
    3YZS1237 3700×1200 3 3-50 200 10-80 11 3.05 4773×2050×2700
    2YZS1548 4800×1500 2 3-100 400 30-200 15 5.35 5900×2270×1620
    3YZS1548 4800×1500 3 3-100 400 30-200 15 6.07 5900×2270×1670
    2YZS1848 4800×1800 2 3-100 400 50-280 18.5 6.15 5900×2560×1620
    3YZS1848 4800×1800 3 3-100 400 50-280 18.5 6.93 5900×2560×1670
    2YZS1860 6000×1800 2 3-100 400 65-550 22 6.95 7060×2560×1620
    3YZS1860 6000×1800 3 3-100 400 65-550 22 7.70 7060×2560×1670
    4YZS1860 6000×1800 4 3-100 400 65-550 30 8.70 7060×2560×1930
    2YZS2160 6000×2100 2 3-100 400 81-720 22 8.48 7130×2990×1760
    3YZS2160 6000×2100 3 3-100 400 81-720 30 9.24 7130×2990×1810
    4YZS2160 6000×2100 4 3-100 400 81-720 30 10.45 7130×2990×1930
    2YZS2460 6000×2400 2 3-150 400 100-810 30 12.35 7130×4121×1810
    3YZS2460 6000×2400 3 3-150 400 100-810 37 13.85 7130×4121×1940
    4YZS2460 6000×2400 4 3-150 400 100-810 37 15.60 7130×4121×2080
