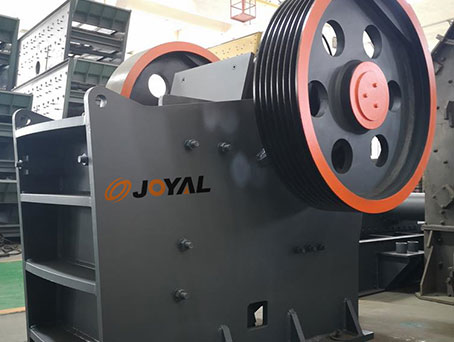

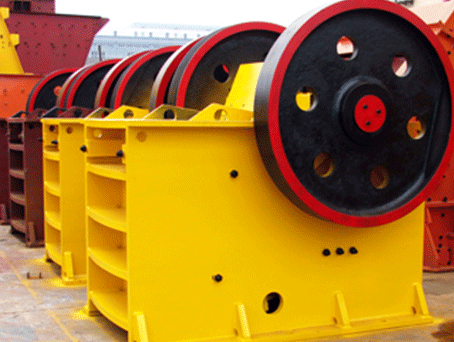

Jaw Crusher

Jaw Crusher

Primary Crusher

The JOYAL Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

Applications: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water Conservancy

E-mail: joyal@crusherinc.com



Product Advantages

01

The machine adopts high-quality high manganese steel casting for core parts, increase the service life of main parts greatly, also avoid repeatedly shutdown and maintenance effectively.

02

The jaw crusher’s eccentric shaft is processed sufficient strength and rigidity. To guarantee the weights and structures of flywheel and grooved enhancing the operation balance

03

When some non-crushing materials fall down into chamber, the elbow plate can realize automatic fracturing and stop the machine to avoid more damage to the entire machine.

04

The outputs of jaw crusher can be easily adjusted to meet client’s different demands;

Application Industry

Jaw Crusher

Working Principle

The strip and strip pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the movable jaw runs down, then the materials are crushed into pieces. It will become bigger when the movable jaw runs up. The movable jaw board leaves the fixed jaw board under the action of pole and spring , then the end products come out from the crushing cavity.



{dede:field.title/}

Specifications - Technical Data

Model Feed Opening Size (mm) Max. Feeding Size (mm) Adjustable Range of Output Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
PE250×400 250×400 200 20-50 5-20 15 2.9 1430×1310×1340
PE400×600 400×600 350 40-100 15-60 30-37 6.8 1700×1732×1653
PE500×750 500×750 425 50-100 40-100 45-55 11.2 2035×1921×2000
PE600×900 600×900 480 65-160 60-140 55-75 16.5 2290×2206×2370
PE750×1060 750×1060 630 80-150 80-230 90-110 29 2655×2302×3110
PE900×1200 900×1200 750 95-165 140-320 110-132 54.5 3789×3050×3025
PE1000×1200 1000×1200 850 105-185 180-400 160-200 56.5 3900×3320×3280
PE1200×1500 1200×1500 1020 150-300 250-800 220-250 99.6 4300×3540×4043
PEX150×250 150×250 125 10-40 1-3 5.5 0.85 896×745×935
PEX150×750 150×750 125 12-45 5-16 15 3.8 1205×1495×1203
PEX250×750 250×750 210 25-60 10-40 22-30 5 1667×1545×1020
PEX250×1000 250×1000 210 25-60 15-50 30-37 6.8 1964×1550×1380
PEX250×1200 250×1200 210 25-60 20-60 37-45 8.5 2192×1605×1415
PEX400×1200 400×1200 320 35-95 28-95 45-55 11.7 2256×2100×1960
JCE1302 180×1300 150 10-30 12-50 30-37 6 1320×2150×1175
JCE1003 250×1000 220 20-40 15-65 30-37 5.6 1400×1850×1310
JCE1303 250×1300 220 20-40 26-85 37-45 6.8 1450×2150×1175
JCE604 400×600 350 35-85 15-85 30-37 10 1920×1460×1840
