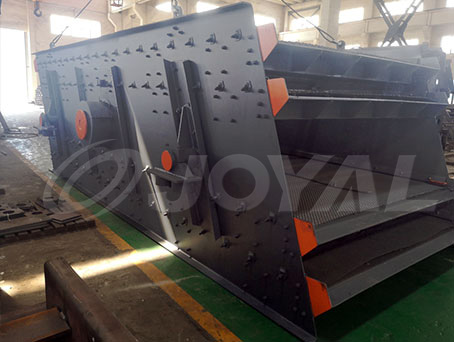

Vibrating Screen

Vibrating Screen

Screening Washers

The JOYAL Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.

Applications: Circular vibrating screen is widely used in product screening and grading in mining, building materials, transportation, energy, chemical and other industries.

E-mail: joyal@crusherinc.com



Product Advantages

01

Reliable performance, no welded point on the side plate, to avoid the risk of fracture;

02

Vibration source is more stable and much powerful vibration strength;

03

V-belt transmission can effectively reduce the impact on the motor, and decrease the failure rate.

04

High frequency and big dip angle, to make the screen with higher efficiency and bigger capacity.

05

Spare parts have excellent universality, which makes later maintenance get easier.

06

Multiple types of screen wires, can freely select different layers to satisfy different production demands, easy for further replacement too.

Working Principle

The vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.

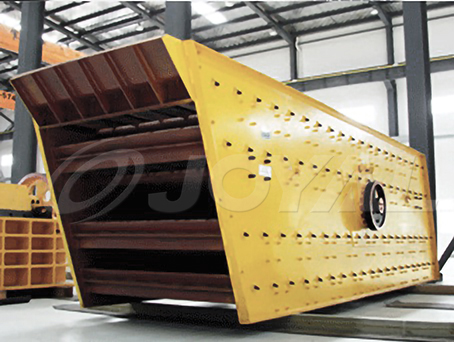

Vibrating Screen

Specifications - Technical Data

Model Screen

Cloth

Size
(mm)

 Screen

Decks

 Screen

Opening

Size
(mm)

 Max.

Feeding

Size
(mm)

 Capacity
(t/h)		 Motor

Power
(kw)

 Weight
(t)		 Overall
Dimension
(mm)
2YZS1237 3700×1200 2 3-50 200 10-80 11 2.40 4773×2050×2247
3YZS1237 3700×1200 3 3-50 200 10-80 11 3.05 4773×2050×2700
2YZS1548 4800×1500 2 3-100 400 30-200 15 5.35 5900×2270×1620
3YZS1548 4800×1500 3 3-100 400 30-200 15 6.07 5900×2270×1670
2YZS1848 4800×1800 2 3-100 400 50-280 18.5 6.15 5900×2560×1620
3YZS1848 4800×1800 3 3-100 400 50-280 18.5 6.93 5900×2560×1670
2YZS1860 6000×1800 2 3-100 400 65-550 22 6.95 7060×2560×1620
3YZS1860 6000×1800 3 3-100 400 65-550 22 7.70 7060×2560×1670
4YZS1860 6000×1800 4 3-100 400 65-550 30 8.70 7060×2560×1930
2YZS2160 6000×2100 2 3-100 400 81-720 22 8.48 7130×2990×1760
3YZS2160 6000×2100 3 3-100 400 81-720 30 9.24 7130×2990×1810
4YZS2160 6000×2100 4 3-100 400 81-720 30 10.45 7130×2990×1930
2YZS2460 6000×2400 2 3-150 400 100-810 30 12.35 7130×4121×1810
3YZS2460 6000×2400 3 3-150 400 100-810 37 13.85 7130×4121×1940
4YZS2460 6000×2400 4 3-150 400 100-810 37 15.60 7130×4121×2080
