Mobile Cone Crushing Plant

Mobile Crusher

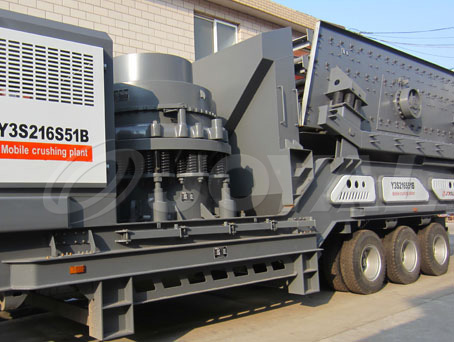

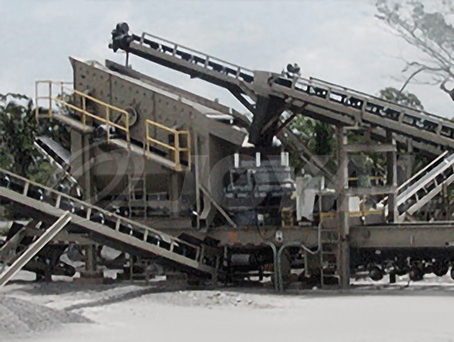

The JOYAL Mobile Cone Crushing Plant is not limited to the location of crushing operation, and it reduces the cost of material transportation. The Mobile Cone Crushing Plant can crush materials on site or somewhere near the work site.

Applications: Mobile crushing + screening plant: used for secondary crushing process, can achieve more complex processing by optimal combination. Mobile screening plant: used for screening worked with other crushers

E-mail: joyal@crusherinc.com

Product Advantages

01

Multiple combinations, moving flexible, the trailer combining alternative equipment, can be tailor-made upon customer's demands.

02

Compared with the stationary plant, the mobile crusher has a shorter engineering period and rapider transition. To avoid the demolition and too much civil engineering work, make it more economical and environmental.

03

The mobile crusher has excellent value-holding capacity, easy to get invest return rapidly compare than stationary plant.

04

The machine can move in remote and rugged areas, greatly reducing the road construction cost.

05

Customer can choose independent operation and combination operation easily by upgrading the main units on the mobile trailer.

06

The hydraulic system and generator can be equipped as per the client’s request.

Application Industry

Mobile Cone Crushing Plant

{dede:field.title/}

Specifications - Technical Data

Model	Vibrating Screen	Cone Crusher	Belt Conveyor	Capacity (t/h)	Power (kw)	Overall Dimension L×W×H (mm)	Weight (t)
Y3S1548Y900	3YZS1548	PYB900	B500×7M	50-200	75	13000×2800×6400	43
Y3S1848S36	3YZS1848	ZYS36	B650×7M	70-300	99-134	13000×3000×6700	47
Y3S1860S51	3YZS1860	ZYS51	B650×8M	120-400	212.5-220.5	14000×3000×6700	53
Y3S2160H220	3YZS2160	HP220	B800×8M	140-450	257.5-264.5	14000×3200×6700>	58
