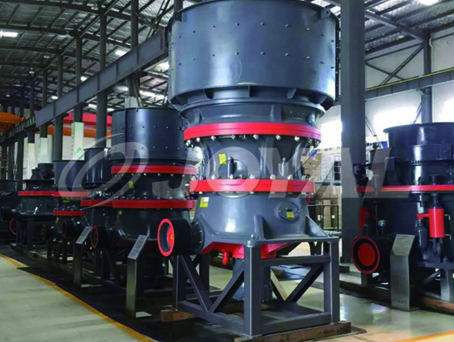

HPZ Single Cylinder Hydraulic Cone Crusher

HPZ Single Cylinder Hydraulic Cone Crusher


The JOYAL HPZ series single cylinder hydraulic cone crusher is combined with world advanced technology and the metal nature. It is suitable for primary and secondary crushing of various of mines and rocks, such as granite, limestone, quartz, sand stone, marble and pebbles that with hardness of f=5-16,even like nonmetallic ore, cement, construction, sand making, metallurgy, etc.

Applications: Can be widely used in metal and non-metal mines, cement plants, construction, sand, metallurgy and other industries.

Product Advantages

1. Optimized cavity, higher production capacity, better end products shape: crushing works between materials that increases the working life of mantle and bowl liner, meanwhile provide a more consistent gradation and superior cubic products.
2. Completely automatic control system: it can realize unmanned operation by continuously measuring and automatic setting system, also the specification of crushing, hydraulic and lubrication in operation will be real-time displayed, so as to reduce the unnecessary losses made by human errors and maximize energy into production.
3. Safe and reliable: adoption of international first-class brand controller to ensure the working pressure maximum 4MPA, and replaced the common water cooling system to be air cooling system, so as to avoid lack of water and leakage of water happens.
4. Easy to maintenance:The structure of cone crusher is simple and compact.It has the features of stable performance, not easy to fault and convenient maintenance..

Application Industry

HPZ Single Cylinder Hydraulic Cone Crusher

Working Principle

The electromotor leads the eccentric sleeve to rotate by the V-belt, drive shaft and drive gear. The movable cone does rotary and pendulum movement under the leading role of eccentric sleeve which makes the movable cone and fixed cone close and far away from time to time. The raw material is crushed in the crusher chamber by squeezing and striking continuously. The crushed stone discharges from the bottom.

Specifications - Technical Data

Model Cavity Feeding size(mm) Discharge size (mm) Capacity(t/h) Motor Power(kw) Weight (kg)
HPZ100 Medium <105 8-22 45-90 90 5700
Medium fine <85 8-22 40-80
Super fine <32 6-19 40-65
HPZ430 Super Coarse <185 13-38 69-208 132 9200
Coarse <145 13-38 66-150
Medium fine <115 10-32 57-145
Medium <90 8-32 61-104
Medium fine <75 8-25 51-92
Fine <50 6-25 48-77
HPZ440 Super Coarse <215 16-44 114-384 220 14300
Coarse <175 13-44 101-229
Medium Coarse <140 13-38 97-242
Medium <110 13-38 117-194
Medium fine <85 8-32 90-248
Fine <70 10-32 96-208
HPZ660 Super Coarse <270 16-51 177-511 315 26800
Super Coarse <235 16-51 174-359
Coarse <215 16-51 171-353
Medium Coarse <175 16-44 162-364
Medium <135 16-38 197-403
Medium fine <115 13-38 192-363
Fine <90 13-38 195-323
Super fine <65 13-22 211-290
HPZ870 Super Coarse <300 22-71 448-1331 500 49800
Coarse <240 19-71 406-1286
Medium Coarse <195 19-71 380-1206
Medium <155 19-71 400-1098
