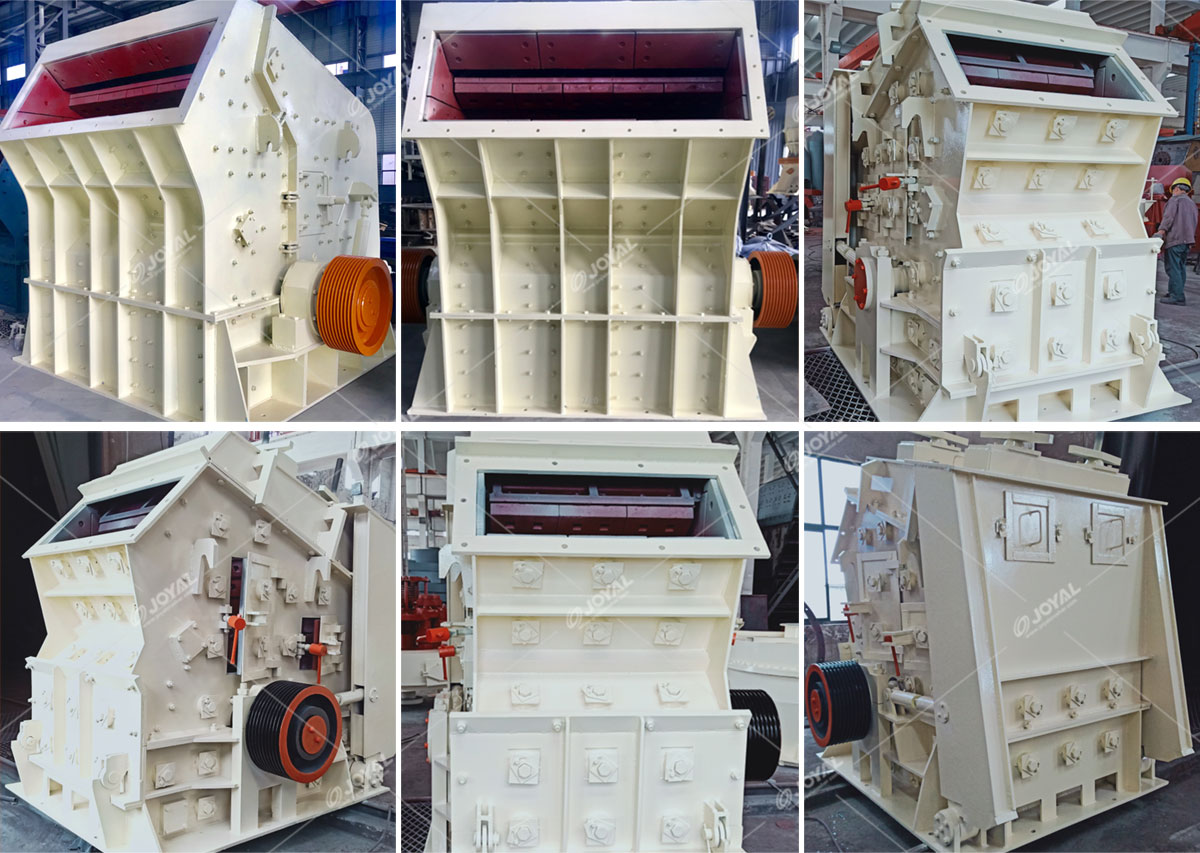

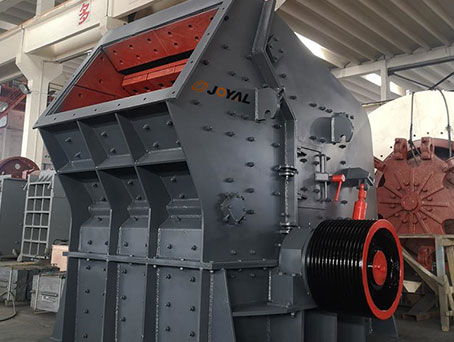

Impact Crusher

Impact Crusher

Crusher

The JOYAL Impact Crusher is used for primary, secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite, marble, and limestone. The Impact Crusher is widely used for sand and rock production in the industry of roads, railways, reservoir, electricity power, building materials and so on.

Applications: PF impact crusher is widely used in the production of sand and gravel materials for construction in highway, railway, water conservancy, electric power and construction industries.

E-mail: joyal@crusherinc.com



Product Advantages

01

The machine is equipped with self-weight safety device on the rear upper rack, if non-crushing materials fall down into chamber, it can be discharged automatically, to avoid risk of overload and more damage to the whole unit.

02

The hammer and impact plate is made from high chrome and wear-resistant materials, much more durable.

03

The machine’s discharge size can be easily adjusted by adjusting the space between impact rack and rotor through twisting the bolt of this device.

04

The finished products are cubic shape, better serve as high quality aggregates.

Application Industry

Impact Crusher

Working Principle

The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipments via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.



{dede:field.title/}

Specifications - Technical Data

Model Rotor Size (mm) Feed Opening Size (mm) Max. Feeding Size (mm) Capacity (t/h) Motor Power (kw) Weight (t) Overall Dimension (mm)
PF-1007 ø1000×700 400×730 250 15-50 37-55 9.5 2400×1560×2660
PF-1010 ø1000×1050 400×1080 300 50-80 55-75 13.2 2440×2250×2630
PF-1210 ø1250×1050 400×1080 300 70-130 110-132 16.5 2700×2340×2870
PF-1214 ø1250×1400 400×1430 300 90-180 132-160 19.5 2700×2695×2900
PF-1315 ø1320×1500 860×1520 350 120-250 180-260 24.8 2860×2800×3050
PF-1320 ø1320×2000 860×2030 500 160-350 300-375 30 2870×3350×3090
